Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW

Brand Name : HR

Model Number : vmc650

Certification : ceiso

Place of Origin : china

MOQ : 1set

Price : usd 19000-40000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40set/month

Delivery Time : 30day

Packaging Details : wooden packing

Warranty : 1 Year

Weight : 8000kg

Condition : New

Type : Vertical

Voltage : 380V 50HZ

Power(w) : 5.5KW

Spindle : Taiwan 8000rpm spindle

Spindle taper : BT40

Contact Now

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW

Vmc650 CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc650 CNC milling machine

Product Details

Vmc650 CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining cente

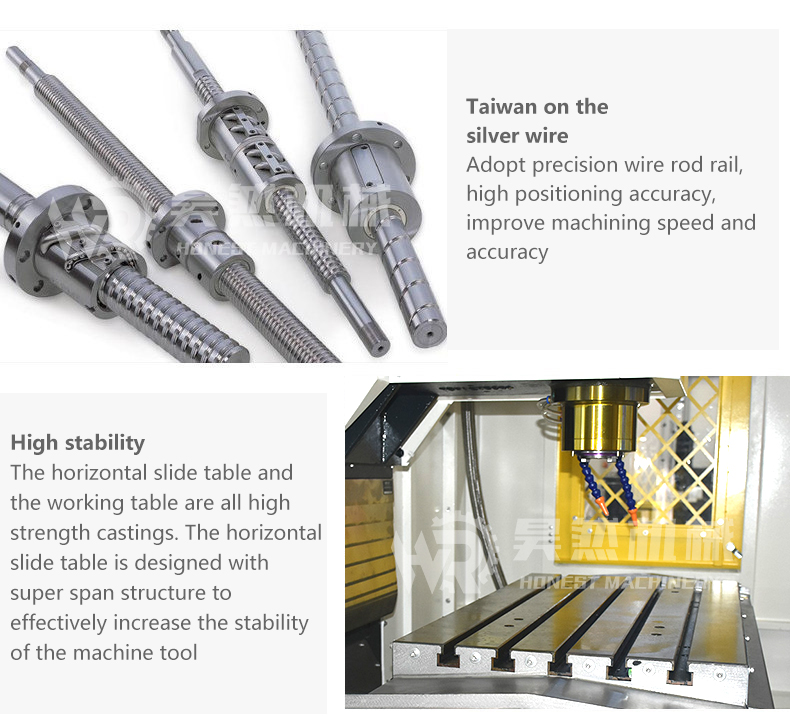

Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality

Taiwan HIWIN high precison guideway

Automatic tool change system

Casting customers are assured of machinery and precision testing

sample

it is widely used to produce the auto spare
 parts, medical treatment instrument and any kind of injection
 mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
